The Administrator Portal for CrewVision is a react based web application designed to manage all of the various types of data and media involved in modern dispatched services.

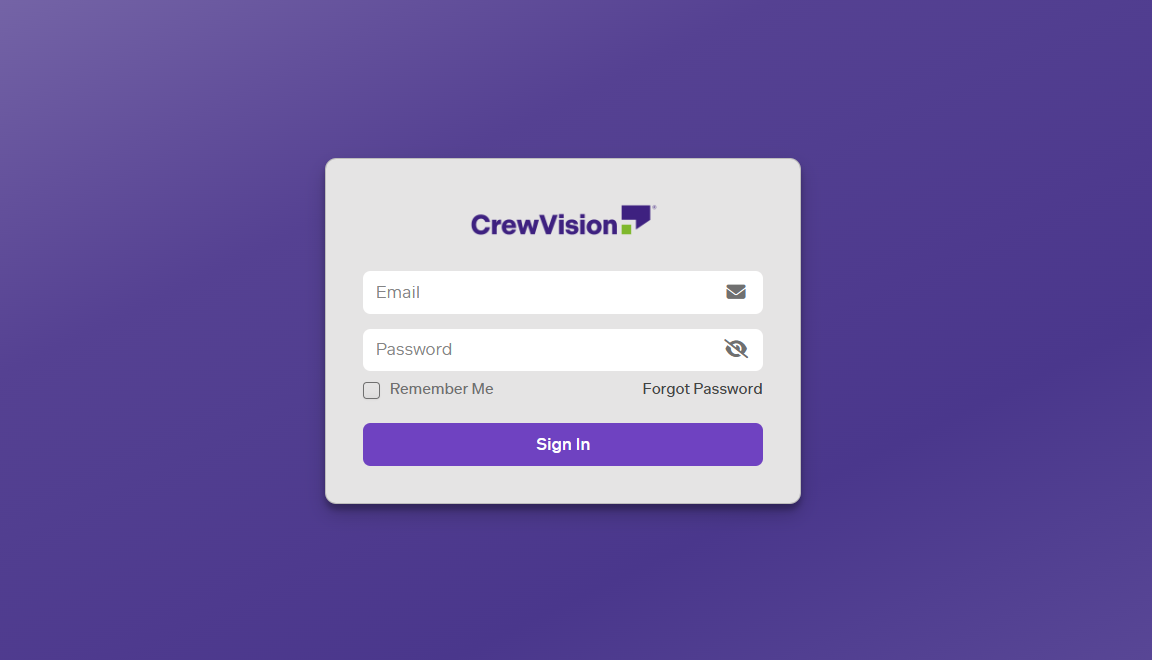

To login into the CrewVision Admin Portal, go to:
Administrator Navigation
The CrewVision navigation consists of 2 left-hand menu systems to help users navigate, an overall major page navigation, and then a module specific navigation.
Major Page Navigation
The major pages in CrewVision are the overview state of all of the major system modules within the system. These pages either appear in a list format or a load with a map browser system.

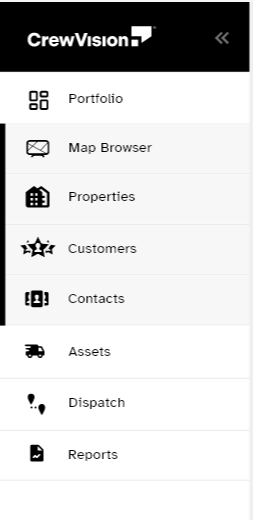

Major Pages Menu
The major page navigation menu slides out on all screens and above all visible layers to let users get to where they need to go, regardless of the screen they are currently on.
The navigation displays in a full-wide view with the icon and menu items displayed inline.
The Major Pages are:
|
Portfolio
Assets
Dispatch
Reports
|

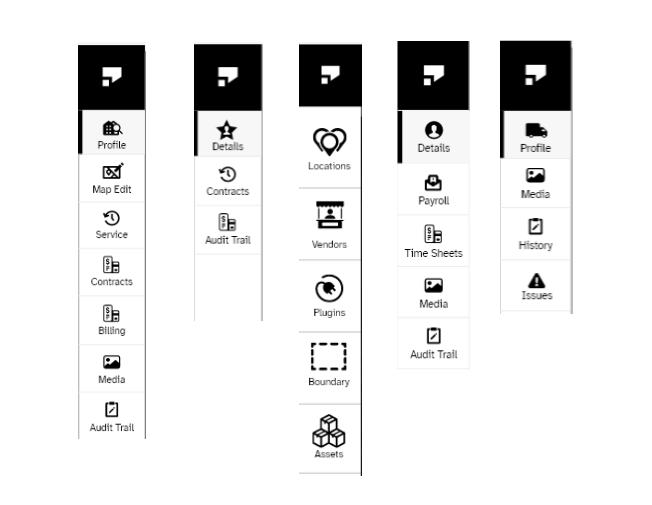

Module Specific Navigation
The module specific menu changes display based upon the current module being viewed by the user.
Each major module has a series of sub pages as can be seen in the samples below:
At any time if the user wants to see the major pages navigation, they can click on the CV icon and the menu will display in front of the module specific menu.

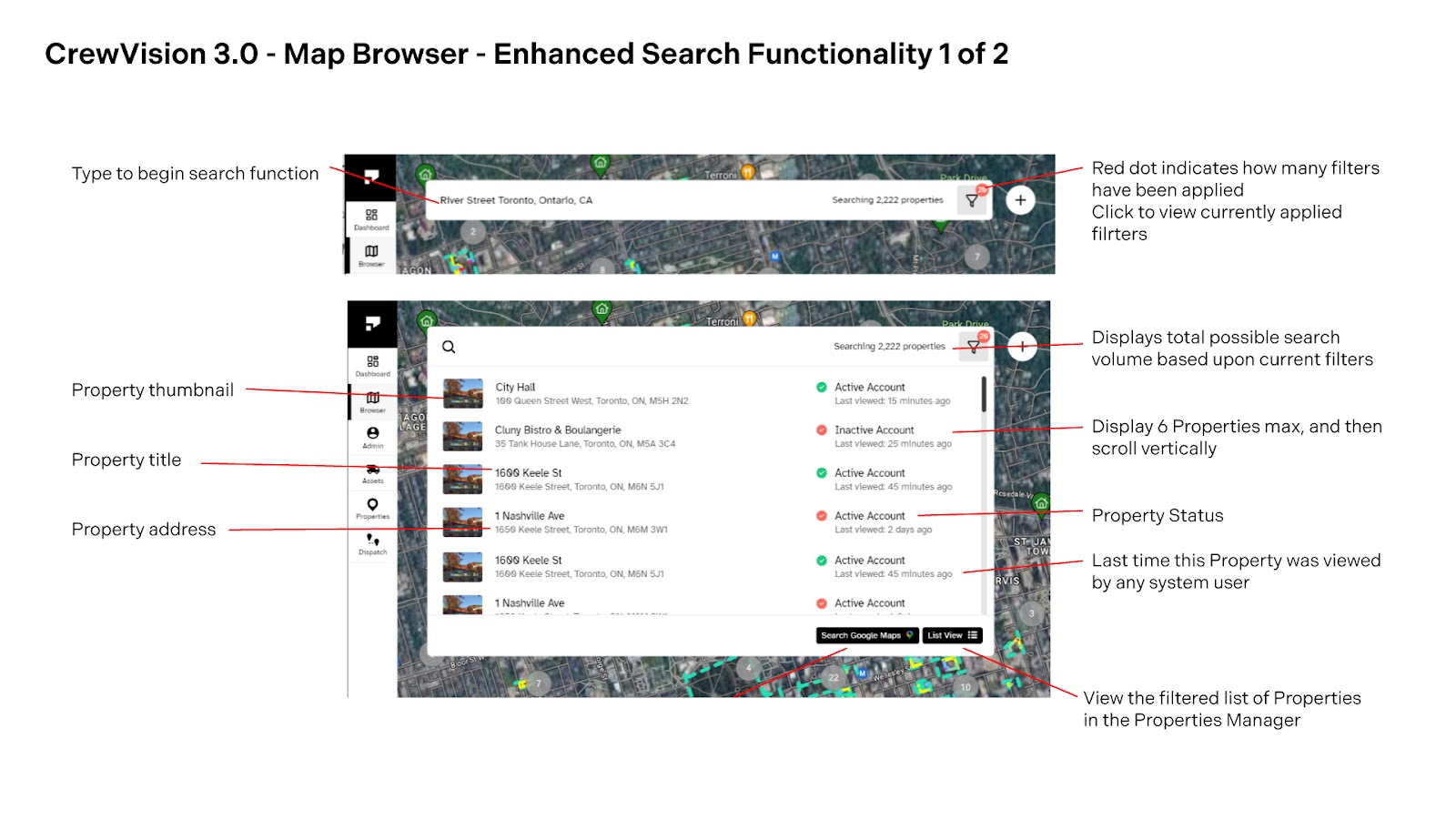

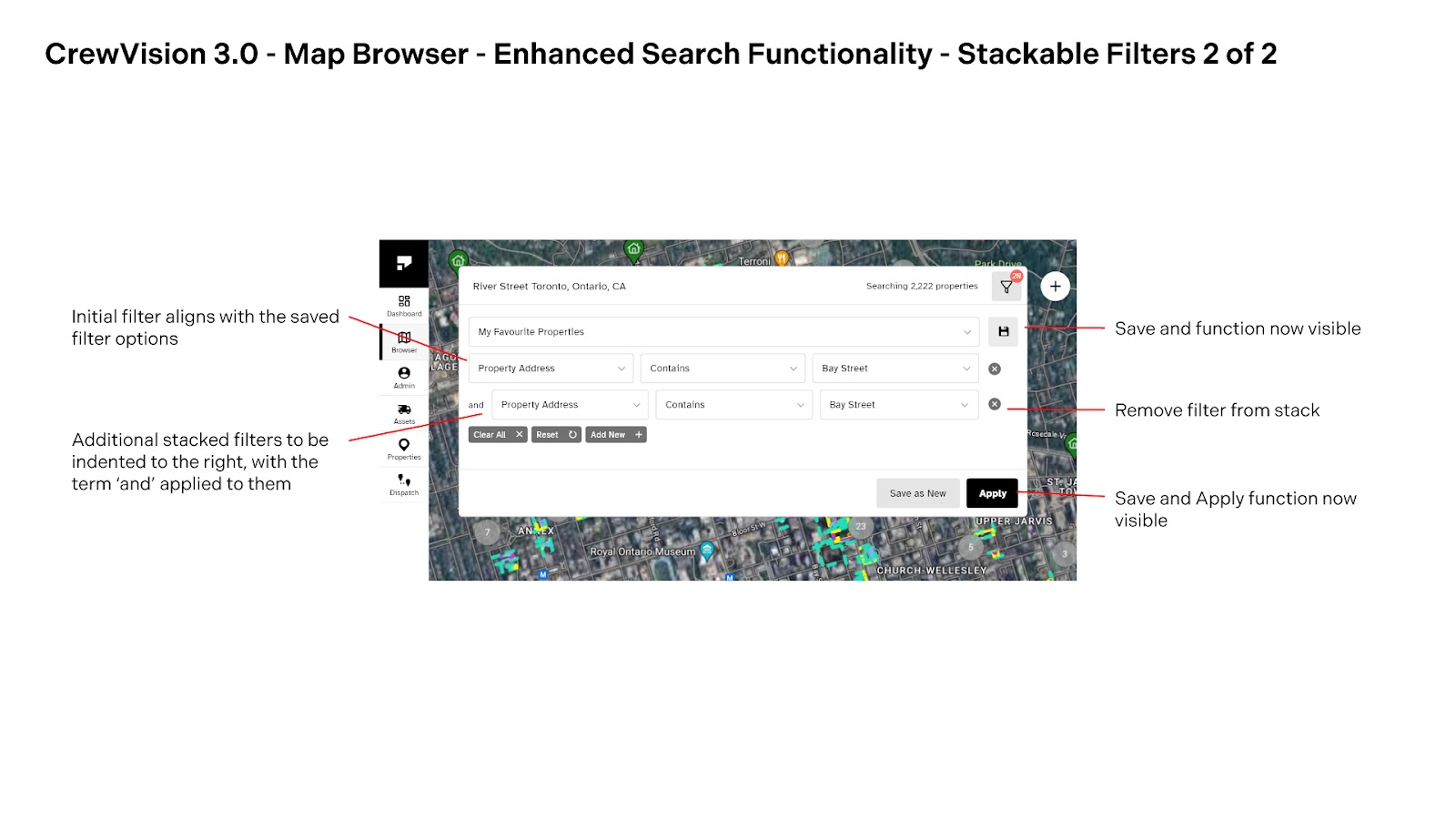

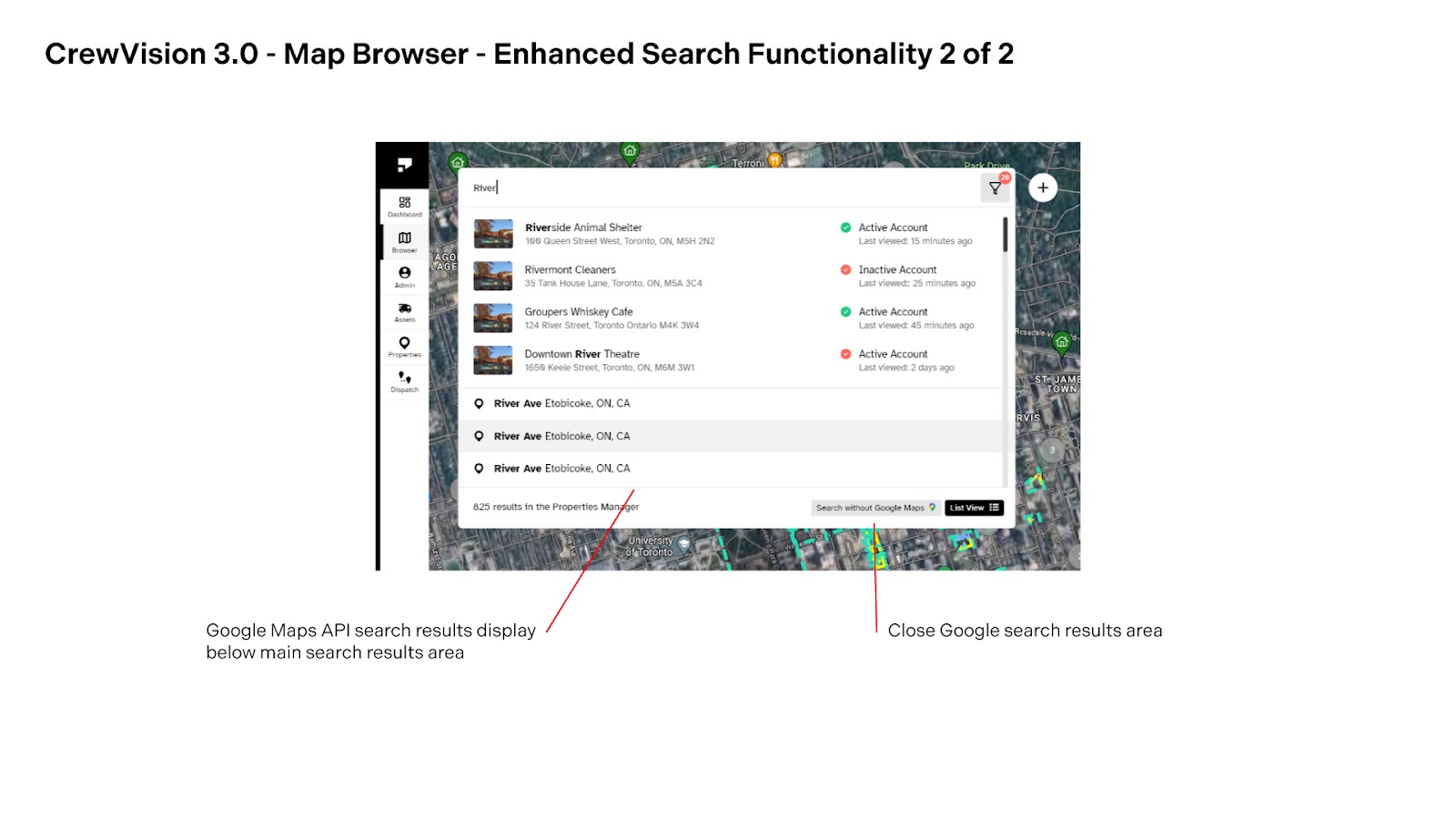

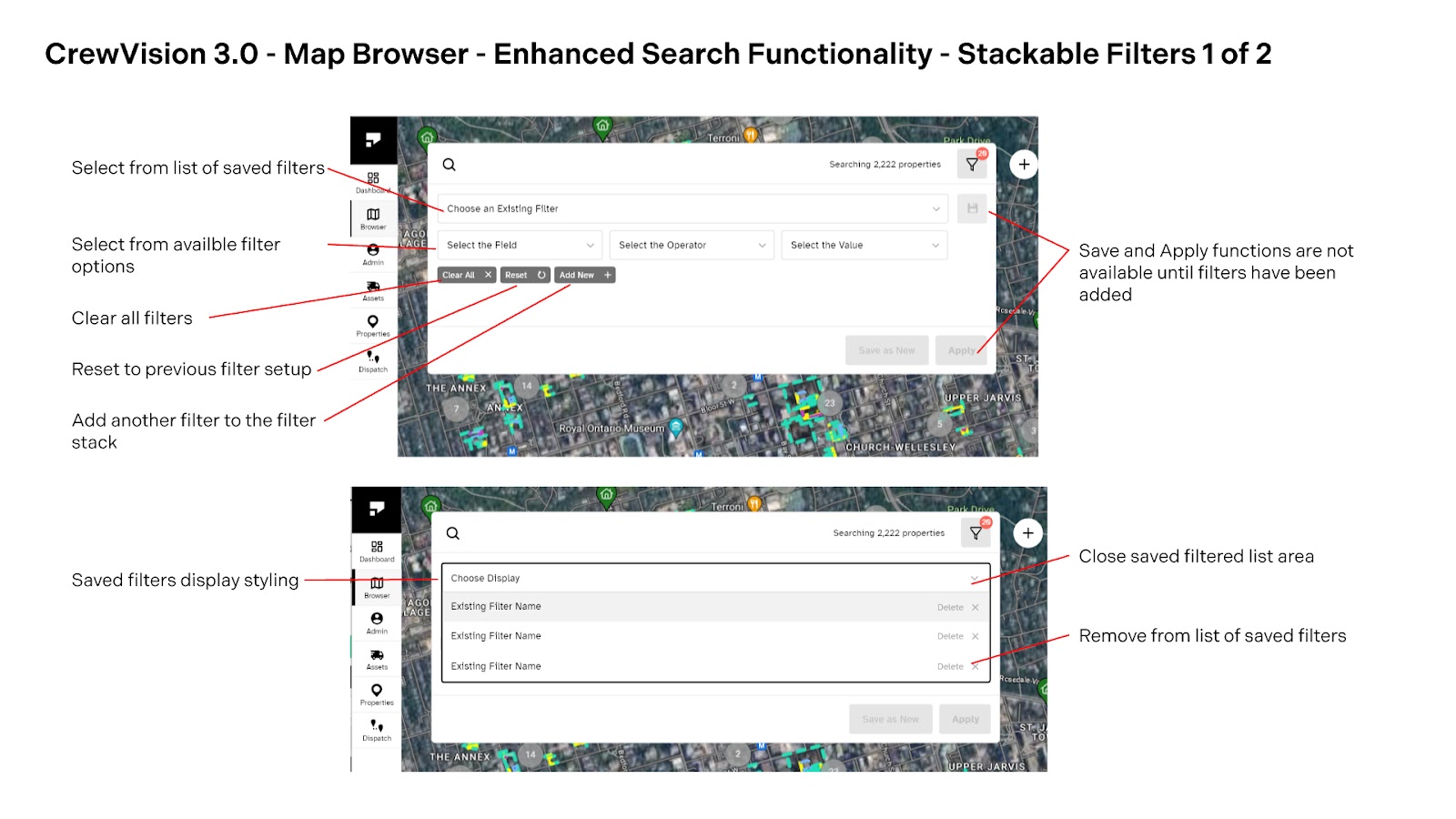

Stackable Search & Filtering
To help users navigate through the vast amount of data that can be stored in CrewVision, we developed an easy to use stackable search and filtering system. This system allows users to stack multiple queries based upon page-specific criteria. This stackable search and filter mechanism is available on both list and map browsing views.

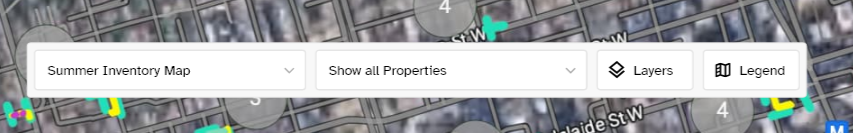

Map Display Controls
To help users visualize their map related data, CrewVision allows for a series of display filtering options on all map browsing pages.
These controls vary from page to page, but are always located in the bottom left of all map browsing screens and include the minimum Google Maps display options of:
- Google Satellite Map
- Google Hybrid Map
- Google Roadmap
- Google Terrain
Certain map views even allow the user to download and replace the background map with a hi-resolution satellite image with roughly 10x the image resolution to a standard Google Map view.
